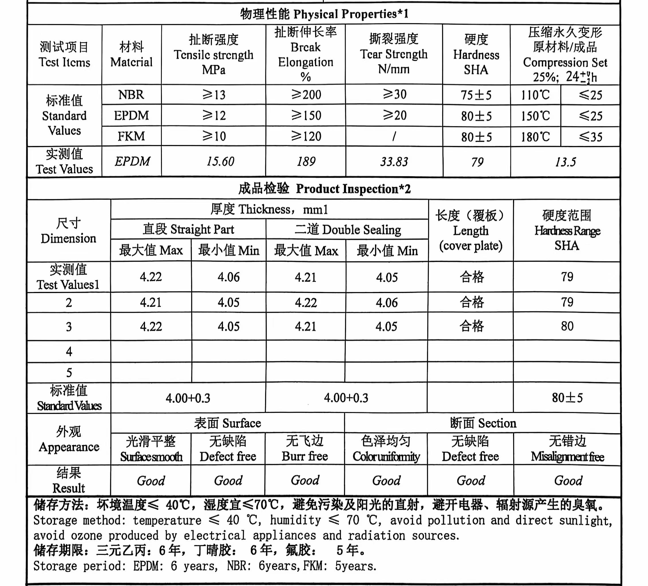

Mechanical properties in a gasket certificate are not just test numbers. They directly reflect compounding quality, filler dispersion, vulcanization accuracy, and molding precision—all of which determine long-term sealing reliability.
In plate heat exchangers, gasket reliability directly determines sealing performance, operational safety, and service life.While EPDM, NBR, and FKM are commonly selected based on temperature and chemical compatibility, long-term performance depends equally on manufacturing control.
Tensile strength measures the maximum stress a gasket material can withstand before failure.
Under-curing reduces crosslink density → tensile drops and elastic recovery weakens. Over-curing makes rubber brittle → micro-cracks may form.
Elongation indicates material flexibility and ability to absorb deformation under compression and thermal cycling.
Low elongation often signals over-curing or excessive filler loading. Excessively high elongation may indicate insufficient curing and low structural integrity.
Tear strength determines resistance to crack propagation, especially along sealing grooves.
Insufficient molding pressure or uneven filler distribution can create micro-voids that weaken tear resistance—critical for high-compression GPHE gaskets.
Hardness determines compression behavior and sealing force.
If hardness is too high, gaskets may not conform to plate surfaces. If too low, excessive compression and premature deformation may occur.
Compression set measures permanent deformation after compression and heat exposure—one of the best indicators of long-term sealing performance.
Low compression set ensures long-term sealing integrity, stable contact pressure, and reduced leakage risk—often more decisive than tensile strength in real operation.
Beyond mechanical testing, finished gasket dimensions must be tightly controlled.
Thickness variation directly affects compression distribution, sealing uniformity, and plate load balance. Even small inconsistencies may lead to localized leakage or uneven stress.
Visual and sectional inspection ensures smooth surface finish, no burrs, no misalignment, and uniform coloration.
Although simple, surface quality significantly impacts early-stage sealing reliability and first-start leakage risk.
| Material | Temperature Resistance | Typical Application |
|---|---|---|
| NBR | up to 110°C | HVAC and oil systems |
| EPDM | up to 150°C | Water, steam, food |
| FKM | up to 180°C | Chemical and aggressive media |
Material selection should consider operating temperature, fluid chemistry, CIP cleaning procedures, and pressure cycling. However, correct material grade cannot compensate for poor production control.
Mechanical properties are direct indicators of production discipline:
Consistent parameters ensure long-term sealing stability, reduced maintenance frequency, lower leakage risk, and improved equipment reliability.
In gasketed plate heat exchanger applications, gasket performance depends not only on material type but also on the integrity of the manufacturing process. Tensile strength, elongation, tear strength, hardness, and compression set are interconnected properties governed by formulation control, curing accuracy, and molding precision.
Properly controlled production ensures:
Plate Heat Exchanger Gasket Testing & Quality Control
The most critical property is compression set, especially for long-term sealing reliability. Low compression set maintains elastic recovery after compression and temperature exposure, reducing leakage risk.
Tensile strength reflects material integrity and resistance to tearing during installation and operation. It must be balanced with elongation and hardness to ensure both durability and sealing flexibility.
Vulcanization determines crosslink density. Under-curing leads to low strength and poor recovery; over-curing causes brittleness and crack formation. Proper time/temperature control stabilizes mechanical properties.
Hardness (Shore A) controls compression behavior and sealing force. Too high = poor conformity; too low = excessive compression and premature deformation. Balanced hardness ensures uniform sealing.
Common causes include material incompatibility, poor vulcanization control, excessive compression set, molding defects, and thermal/pressure cycling fatigue. Many failures are linked to manufacturing control rather than material alone.
Small thickness inconsistencies cause uneven compression distribution, localized leakage, and plate misalignment. Precision molding and strict dimensional control are essential for stable performance.
Intervals depend on operating temperature, chemical exposure, pressure cycling frequency, and compression set behavior. In high-temperature or aggressive conditions, inspection during scheduled maintenance is recommended.
Not necessarily. EPDM is strong for water/steam; NBR is better for oil-based fluids; FKM is preferred for aggressive chemical environments. Selection must match operating conditions.
Surface defects (burrs, molding imperfections) can cause initial leakage, stress concentration, and early crack propagation. Visual inspection is simple but critical for quality assurance.
