Spiral Plate Heat Exchangers (SPHE) are often labeled as “less efficient” when compared with gasketed plate heat exchangers or compact welded plate designs. In reality, SPHE is not designed to win on peak heat-transfer coefficient—it is designed to keep working when other exchangers cannot.

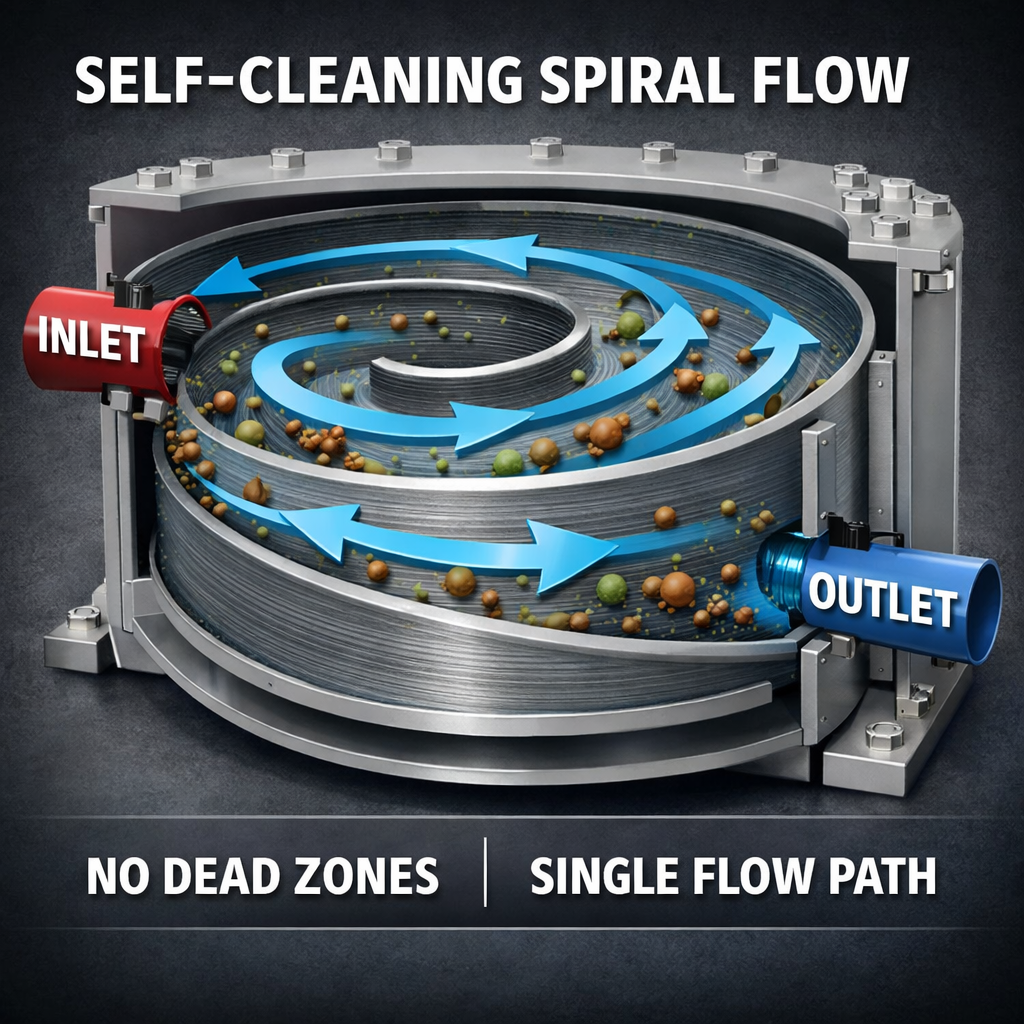

SPHE uses a single, continuous spiral channel on each side. This geometry avoids parallel micro-channels and complex distribution zones that are sensitive to fouling and plugging. For dirty, fibrous, viscous, or solids-laden fluids, the most important KPI is not “highest U-value”, but stable operation with minimal unplanned shutdowns.
Key reasons to choose SPHE:
High fouling tolerance: one continuous channel reduces maldistribution and “partial blockage failure”.
Self-scouring flow pattern: spiral curvature encourages secondary flow, helping prevent stable deposits.
Handles solids & fibers better than many compact plate designs.
Mechanical cleaning friendly (for removable-cover designs): full access for water jetting and manual cleaning.
Reliable under unstable conditions: frequent start/stop, flow fluctuations, and variable properties.
Where SPHE is commonly used:
Wastewater / sludge heat recovery
Pulp & paper stock / fiber-laden streams
Heavy oil, bitumen, tar, and high-viscosity fluids
Crystallizing / scaling services
Chemical processes with polymerizing tendencies
When SPHE may NOT be the best choice:
Very clean fluids where maximum compactness and high U-value are priorities
Extremely high pressure requirements beyond typical SPHE design ranges
Applications requiring ultra-low pressure drop with high flow velocity simultaneously
In sludge and wastewater services, the “best” heat exchanger is rarely the one with the highest theoretical U-value. The real challenge is fouling stability: solids, fibers, bio-film, grease, and scale quickly destroy performance in exchangers that rely on precise distribution.
SPHE solves this by forcing the entire stream through one continuous path. Even when fouling occurs, it tends to be more uniform and predictable, allowing the system to remain operational longer. Maintenance becomes planned rather than emergency-driven.
What SPHE solves that others struggle with:
Prevents early “channel-by-channel death” common in multi-pass compact plate designs
Reduces risk of sudden plugging from debris and fibers
Enables mechanical cleaning without full replacement or complex disassembly
Keeps heat recovery running reliably in real-world dirty conditions
From a purely theoretical heat-transfer coefficient (U-value) standpoint:
Yes — SPHE typically has a lower peak U-value compared to gasketed plate heat exchangers or compact welded plate designs.
However, in dirty service:
The effective long-term performance of SPHE is often superior because it:
Maintains stable flow
Avoids localized blockage
Reduces emergency shutdowns
Preserves recoverable heat over time
SPHE is optimized for operational stability, not laboratory performance.
SPHE geometry provides several anti-fouling advantages:
No parallel passages that can individually plug.
The curved spiral path generates secondary flow patterns that disturb deposit formation.
Deposits tend to build evenly instead of causing sudden “channel death.”
This significantly improves predictability in sludge and wastewater services.
SPHE is commonly used for:
Wastewater and sludge heat recovery
Pulp & paper stock (fiber-laden streams)
Heavy oil, bitumen, tar
High-viscosity fluids
Crystallizing or scaling services
Polymerizing chemical streams
Grease- or biofilm-containing fluids
It handles solids and fibers better than many compact plate designs.
SPHE prevents:
Early “channel-by-channel failure” seen in compact multi-pass plate exchangers
Sudden plugging caused by debris
Maldistribution from uneven inlet flow
Rapid performance degradation under unstable process conditions
It keeps heat recovery systems running in real-world dirty environments.
Yes — especially in removable-cover designs.
Maintenance advantages include:
Full access to spiral channel
Water jetting capability
Manual scraping if necessary
No need for full plate pack disassembly
This makes SPHE highly maintenance-friendly in sludge and scaling services.
SPHE is highly tolerant of:
Frequent start/stop cycles
Flow fluctuations
Variable fluid properties
Solids concentration changes
The single-channel design minimizes sensitivity to distribution imbalance.
SPHE may not be ideal when:
The fluid is very clean and maximum compactness is required
Extremely high design pressure exceeds typical SPHE limits
Ultra-low pressure drop and high flow velocity must be achieved simultaneously
Space constraints demand very high surface density
In clean-service heat recovery, gasketed or welded plate exchangers may outperform SPHE in compactness.
Municipal wastewater treatment
Industrial sludge processing
Pulp & paper
Oil & heavy hydrocarbon processing
Chemical manufacturing
Biogas systems
In sludge systems, theoretical U-value is not the primary KPI.
The real KPI is:
Operational stability.
SPHE forces the entire sludge stream through one continuous path, ensuring:
Predictable fouling behavior
Longer runtime between cleanings
Reduced emergency shutdown
Easier maintenance planning
It turns reactive maintenance into scheduled maintenance.
